Tube-in-Tube Sterilizer with Aseptic Filler (HP)
The aseptic heat exchangers with filling machine are available in different types of configuration, depending on the characteristic of the product to be processed.

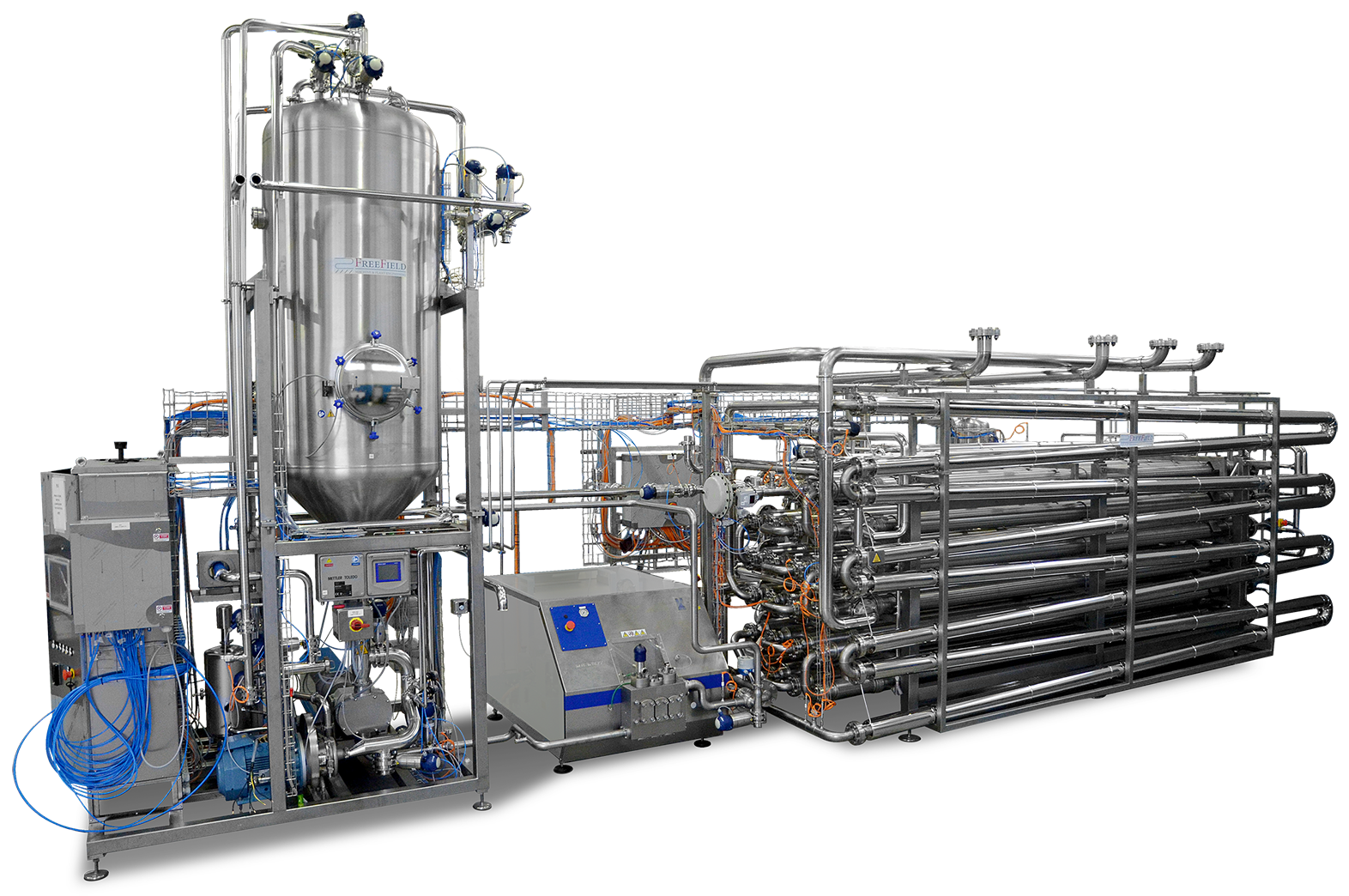

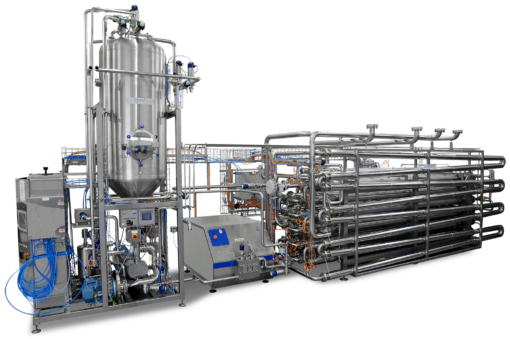

The Tube-in-Tube Sterilizer (HP) constitutes the core of fully integrated processing lines. The Tube-in-Tube Sterilizer Line (HP) is mainly composed of a Tube-in-Tube Heat Exchanger section, aholding section (sterilizing) and a cooling section that is connected to a filler machine.
Fast, reliable, cost-effective and efficient, Freefield technical staff constantly develops cutting-edge and customized solutions, in order to meet customers’ highest requirements.
Application
single strength / concentrated fruit and vegetable purees
Composition
Sterilizer with filling machine
Product Data
| HIGH PRESSURE HIGH ACID | HIGH PRESSURE LOW ACID | |
|---|---|---|
| Viscosity | high | high |
| Type of Exchanger | tube-in-tube (4 tubes) | tube-in-tube (4 tubes) |
| Operating pressure | up to 100 bar (standard execution) | up to 100 bar (standard execution) |
| Flow rate | up to 8000 l/h | up to 8000 l/h |
| Product pH range | pH up to 4,5 | pH up to 7 |
| Product pump | high pressure pump | high pressure pump |
| Product holding time | 30 / 60 seconds with manual bypass configuration | 30 / 60 seconds with manual bypass configuration |
| Sterilization temperature | up to 115° C | up to 135° C |
| Final product cooling temperature (minimum) | +30° C (Aseptic filling) and +5° C (Non-Aseptic filling) | +30° C (Aseptic filling) and +5° C (Non-Aseptic filling) |
| Product receiving | vertical tank (optional deaeration system) or horizontal tank | vertical tank (optional deaeration system) or horizontal tank |
